Electronic parts for sale

Item

 quantity new/used price comments
1 new $75 OBO

Klystron OKI Electric 20V10 Flange UG-595, 15mm Ku band

From the looks of it, this was a tube that was used to parameterize the particular tube, not for production or anything - it has a Huges test report tab (number 038895 on it, and a '98 inventory tag, and older inventory tags going back to '73.  It is serial number 423.  It is in the original box, with original Styrofoam, but the top of the cardboard box is missing.

I've marked this as "used" because if there is a test report on it, it must have been powered up once - there is no other evidence of use, however, it is very pristine in appearance, no scratches on the flange, etc.

This is a 18-22 GHz 15 mm band Klystron which I believe puts it in the Ku band

there is an interesting article about using it here http://ftp.gb.nrao.edu/electronics/edir/edir114.pdf


BGY67A 200 MHz, 24 dB gain CATV reverse amplifiers 3 used $4 ea Removed from a CATV Head End system that was surplussed - system was supposedly working when shut down, but I have no way to test these devices, so they are AS IS, I've priced them accordingly.

The manual for these devices is located here: http://www.nxp.com/acrobat_download/datasheets/BGY67A_4.pdf

1.1 General description Hybrid high dynamic range amplifier module in a SOT115J package operating at a voltage supply of 24 V (DC).

1.2 Features

 Excellent linearity
 Extremely low noise
 Silicon nitride passivation
 Rugged construction
 TiPtAu metallized crystals ensure optimal reliability

1.3 Applications: Reverse amplifier in two-way CATV systems in the 5 MHz to 200 MHz frequency range

Table 1: Quick reference data

Symbol Parameter  Conditions Min  Max  Unit
Gp  power gain  f = 10 MHz  23.5 24.5 dB dB
Itot current consumption (DC) [1] The module normally operates at VB = 24 V, but is able to withstand supply transients up to 30 V. 215 230 mA
Ortel Return Path Photodiode Receiver Module 2860B-E02 1 used $9 Removed from a Telecom/Video head end system that was supposedly working when shut down.  I have no way to test this device, so it is AS IS - I've set the price low accordingly.

The specification sheet is here http://www.emcore.com/assets/fiber/ds.2606B_PIN_Rx.pdf

Features
5MHz – 200 MHz frequency range
Flat response to + 0.5 dB
High optical responsivity
Ultra low optical return loss
75  impedance-matched

The 2606B CATV return-path photodiode module is a critical component for the delivery of high-performance interactive services for today’s twoway fiberoptic networks. These modules utilize PIN InGaAs photodiodes in robust 14-pin DIL packages that exhibit excellent sensitivity, low noise, and exceptional linearity in return-path optical links. The module incorporates a patented impedance-matching circuit, which optimizes very low noise gain in optical broadband receivers.

Table 1. Pin Descriptions
1,2,3,4,5,6 Ground
7,8 Open
9 RF Out
10 Ground
11 Bias
12 Ground
13 Open
14 Ground


Isolation transformers

 detailed specs are here:

http://system.netsuite.com/core/media/media.nl?id=2648&c=ACCT126831&h=8a9b1ee79a63bbf51f8b&_xt=.pdf

Triad N55MG isolation transformer, tested and working, exactly as pictured.  250 Watt transformer, grounded outlet, spec sheet is here:

http://system.netsuite.com/core/media/media.nl?id=2631&c=ACCT126831&h=6aecda52e5165adb3126&_xt=.pdf

Excellent unit for your test/repair bench if you are working on older tube equipment with a hot chassis.  Has a grounded outlet built in. 1500 volt isolation between windings. Aprox 6 foot cord.



 1 ea used $25 (54M)

&

$35 (55MG)
Eppley Laboratory, Newport RI, standard or Weston cell - one of the wires is broken, so while you may be able to fix it, I would consider this to be a display piece.  A standard cell is used as a voltage reference for calibration and measurement

1 used 6.50 - you can read about it here:

http://en.wikipedia.org/wiki/Weston_cell  --- quoted below:

The Weston cell, invented by Edward Weston in 1893, is a wet-chemical cell that produces a highly stable voltage suitable as a laboratory standard for calibration of voltmeters. It was adopted as the International Standard for EMF in 1911.

Chemistry

The anode is an amalgam of cadmium with mercury, the cathode is of pure mercury, the electrolyte is a solution of cadmium sulphate and the depolarizer is a paste of mercurous sulphate.

As shown in the illustration, the cell is set up in an H-shaped glass vessel with the cadmium amalgam in one leg and the pure mercury in the other. Electrical connections to the cadmium amalgam and the mercury are made by platinum wires fused through the lower ends of the legs


Scientific Atlanta (CISCO) Status Monitoring Module 1 used $12 As pictured, Scientific Atlanta (now bought by Cisco) Status Monitoring Module, 539065.  On the front (pictured) it has a handheld controller port, on the back there is a coax connector, a 12 pin square male connector, and a db-25 male connector.  I have no way to test this, so it is strictly as is.  The stuff from this lot that I have been able to test has all tested good, but on this one, I'm clueless

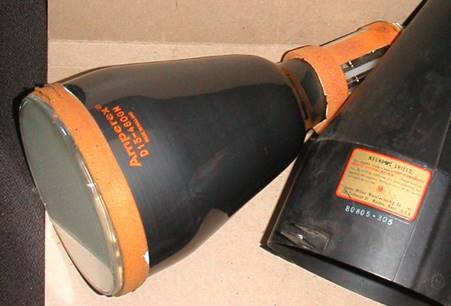

I've saved this 5 inch CRT for decades so I could build an oscilloscope with it, or do something else fun - but I have a scope and I'm out of space, so this has to go - I can't remember whether I removed it from a piece of mil surplus equipment, or whether it came separate (in which case it would be unused) --- I don't see marks from where it would have been installed, so it very well might be new/unused/surplus NOS or whatever you want to call it.  I'm sure it's OK, I wouldn't  save a bad tube, but I have not powered it up and tested it (to do that, I'd have to build that scope, right? and then I'd need to keep the scope and I'd have an even worse space problem than I have now) - so this is AS IS.  It is time to  move this from my collection of really cool and interesting stuff to yours.  The tube is marked "made in Holland" so I presume the real maker is Phillips.



you can find a data sheet for this tube here:

http://www.shinjo.info/frank/sheets/011/d/D13-480GH.pdf Salient characteristics are:

2KV anode voltage
Green phosphor
6.3V 300 ma filament
Electrostatic deflection



 1 ? 25

I've sold the Mu-metal shield, so what is left is the tube only, I just haven't taken a new photo.
  Heatsink for TO-220 cases, Wakefield Part # 218-40CT5, 1.03"L X.5"W X.4"H

Mouser part # 567-218-40CT5

Data Sheet here: http://www.wakefield.com/PDF/Low%20Power%20Board%20Level%20Spec.pdf

 many new 20 cents ea
Heatsink - for TO-92 - Aavid Thermalloy 575200B00000G, Mouser part 532-575200B00, ROHS compliant  Data Sheet here aprox 12 new 10 cents each
Heatsink - Black Anodized TO-220, AAVID Thermalloy, 532-530613B00 RoHS compliant aprox 75 new 20 cents each
Heatsink for TO-5, black anodized, AAVID thermalloy 532-323005B00
 5K Bourns Trimpot JAN RJR12FL502P MIL SPEC



 10 new $3 ea


Bourns 3296Z-1-101LF - 100 ohm, multi-turn - Digikey price $2.20, so $1 each (have around 15-20 of these)
Mouser 323-409H-5K - qty 762, with long knob, HZ, 5K - mouser's price is $1.19 each, so 50 cents each up to 50, 40 cents each for any qty above 50

Resistors
JANTX carbon resistors, 1/4 watt 5%, Allen Bradley, pks of 50
330 (5 pkgs)
1000 (3 pkgs)
2200 (3 pkgs)		 50 per pack

11 packs

 new $5/pack  Click here for photo values are 330 ohms 5% 1/4 watt and 1000 ohms 5% 1/4 watt, and 2200 ohm 5%
Carbon film resistors 1/4 watt:

2.7,56,1k,2.4k,5.6k,10k

24 56 100 150 200 240 300 390 470 1,300 2,400 3,000 4,700 5,100 8,200 10,000 15,000 24,000 33,000 75,000 100,000 220,000 300,000 8,200,000

Carbon 1/2 watt

10 270 390 1,500 2,200 2,200 3,300 7,500 8,200 8,200 10,000 12,000 13,000 24,000 33,000 43,000 47,000 56,000 100,000 470,000 680,000 2,200,000 10,000,000

Carbon 1 watt

10,000 47,000



 quantity of each value varies new 5 cents each
1% metal film

1/4 watt:
390, 1K, 20k, 220k, 1M

1/2 watt:

10, 10.2, 13.3,15,16,20.5,24,26.1,32.4,40.2,51.1,56.1,64.9,82.5,

102, 120, 130, 160, 240, 261,324, 380,402, 511, 620,649,680,825

1.02k 1.3k 1.62k 1.87k 1.96k 2.05k 2.42k 2.61k 3.24k 4.02k 5.11k 6.49k 8.25k

10.2k 12.1k 13.0k 13.7k 15k 15.8k 16.2k 16.5k 17.4k 19.6k 2.05k 26.7k 75k 100k 222M

1 Watt - 685K, 150K

2Watt:

1.3 1.5 2 2.7 10 13 20 68 1k 3k 4.7k 20k 100k 110k 150k 180k 240k 470k

1/4 watt RND60 type 1 and 2%

1K, 1.62k, 1.69k 7.78k 1.91k 2.05k 2.15k 2.26k 2.34k 2.67k 2.74k 10k 10.2k 20k 75k 300k 475k


1% 1/2 watt metal film, 200 per pkg: $4 per pkg

2.25k 13.3K, 10.2, 5.22K, 13.7K, 10.2K, 19.6K, 121, 17.4K, 15.8K, 26.7, 12.1K, 4.02K, 26.1K, 20.5, 16.2K, 2.05K

 200 per pkg new $4/pk
brown boxes:
16.5K (2 boxes)
470K, 2W, 5%, carbon film

large bags: price per 100, but I'm going to weigh them not count them, so you won't get an exact number
75K $3.50
24K 1/2W 5% carbon $4
16.2K $4.50		 new
metal film (I think)
100K (?2W?) in pkgs of 100 $3.50 per pkg
121 ohm 1% ?2W? same price as above, packed by weight (brown red brown red, with yellow tolerance band)

4.7K 1/4 watt carbon pkgs of 200 $2 per pkg
 new
2 watt 120 ohm  25 cents each new .25 ea
240 ohm 5 watt, 470 ohm, 380 ohm new $1 each

ten for $8

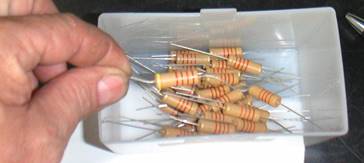

bag of used carbon resistors 1 bag, a hundred or two resistors used $5 including shipping Click here for photo

Transistors
MPSA64 - PNP Transistor, Fairchild, RoHS compliant - Mouser PN 512-MPSA64  Data sheet

MPSA18 - NPN Transistor, Data sheet

2N5401 - PNP transistor Data Sheet

MPSA14G  NPN Darlington pair 30V, Data Sheet

KSC1845BU NPN 120V 50 ma  Data Sheet

PN918  NPN RF  transistor  Data Sheet

 100 new 5 cents each

10 cents each
transistors, TO-5 (TO-39) case
2N5322 (aprox 2000 of these) PNP http://www.datasheetcatalog.org/datasheet/stmicroelectronics/9039.pdf


2n5320 (box of 700) NPN http://www.datasheetcatalog.org/datasheet2/e/0zh4c89gc0se0xxwh8r0z6hyoo3y.pdf  mouser price for 2n5320 is $1.25, 2n5322 is $1.75, so 1/2 of that price, quantity determined by weight (so count will be inexact)

 many new
MJE15030G - npn 8A 150V TO220 - digikey price $2.20 each, $1.10 each new
MT P2P50E TMOS power FET, 2A 500V, RDS (on) - 6 ohm - $2 each, 20 for $30 new
MJ21194G, 16A, 250V, 250W NPN - RoHS compliant - TO-204 case Mouser part number 863-MJ21194G, Data sheet here  Mouser price is $3.63 each, so I've set the price at $1.90 each, less if you buy a lot of them 75 new $1.90 ea

DIODES
CQ725G HV Schottky rectifier - If = 10A, VRRM=100V, Vf .65 - 50 cents each
1n5408 3 amp 1000V 10 cents each
1n4007 1 amp 800V 5 cents each		 new
various large diodes, 150 amp to 300 amp about 12 used $7 ea, ask if you want a bunch click to enlarge
I have 5 of the ones on the left, two of the next, (1N1662 275A,150-V) and the rest only as shown.  the rightmost one is an SCR.  next to it is 1N3088 (400V 150A).  to get an idea of size, click on the image - the squares on the background are 1/4 inch


I've had this sitting around for a very long time, never have figured out exactly what it is, time to mystify someone else - it fits into a 9 pin miniature tube base, it weighs about what one would expect for a transformer, on the top it says T200  352534     no other markings anywhere - I don't know how I came to have it, whether it was aerospace surplus or whether it came out of something I took apart in the early 60s - whatever it is, bid on it and make it your problem.   It could also be a synchronous vibrator from an instrumentation amplifier but who knows 2 ? 5 ea
4X3 inch heatsink with diodes (I looked up one diode, it's 1N1183, 35A, 30V., the other diode is IR34150 2 used $6 each, $9 both
Diode assembly - 30 diodes, 1n4005 1 new $4

Sockets and Connectors
Mouser part number 534-4514, "Socket 4 TO3 W/Tabs - Keystone Transistor Sockets.  ROHS compliant about 50 New, ROHS compliant $.75 ea mouser sells for $1.75 each
Connector  Header, 12 position, .1 spacing ROHS compliant, gold plating, Digikey WM4910-ND, MOLEX part number 70553-0011 - Digikey price is $2.37 each about 32 new $1 each
bayonet based pilot light sockets (like hold a #47 bulb) ten cents each 50 to 100 new .10 ea

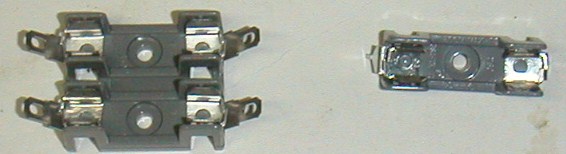

Single and Double fuse holders, as shown - 		 50 to 100 new 15 cents/30 cents each
selection of international (non- USA) plugs as pictured new $3 each
Integrated Circuits
surface mount parts:

LM78M05CDT Mouser part # 511-1.78M05CDT  5.0V .5A positive ST voltage regulator TO-252

701 751s  (op amp, 8 pin)

18LF1220 microprocessor
74154 14 new? $0.50 ea 4 to 16 decoder  (TTL)
4164 - inquire, may all be sold a few used $1 ea 64KX1 DRAM
8031 2 used, tested $2 ea CPU for embedded use - keyboard, controllers, etc
z-80 ? CPU, used

Inductors and Chokes
.448 thick, 1.075 OD, .568 ID, marked 105871 55039A2 0, gray colored

.263 thick, .501 OD, .300 ID, brown colored, no marking

 I found the spec sheet for the torroids, here
It is from their MPP series, read about that series here  They say: MPP cores possess many outstanding magnetic characteristics, such as high resistivity, low hysteresis and eddy current losses, excellent inductance stability after high DC magnetization or under high DC bias conditions and minimal inductance shift up to 2000 gauss under AC conditions. Applications include Flyback Transformers, Buck/Boost and Power Factor Correction (PFC), Inductors, In-Line Noise Filters, High Q Filters, and Resonant Circuits. I have probably 100 of them (haven't counted),  - shipping depends on quantity, but will never be more than $11 within the USA		 ~100 new .25 ea
pkg of 5 common mode chokes, "33 ohms 100 Mhz, 10A" Steward Ferrite EMI
Common Mode Choke, ROHS compliant, Mouser P/N 875-CM19222X330R-10 - ten cents each  $9 for all
Capacitors
EMI filter, Vishay Sprague 20VLSS10 (.01 at 250VAC) bags of 250 $15 3 bags new $15 per bag
2.2 uf 35V 10% (tantalum, I think) marked 225K new 10 cents ea
7 uf 50V radial lead electolytic Xircon?
25V 1000 uf 20% radial lead electolytic Xircon Mouser 140-XR1.25V1000-RC
3440pf 500V 1% Radial lead mica
5pf 500VDC Radial lead mica CDE MCD15CD050D03, Mouser 5982-15-500V5
1000 pf 100V 1% Radial lead mica CDE
680pf 300v Radial lead mica CDE
2100 pf 1% Radial lead mica SANG 904335-2
33 pf 5% ? V Radial lead mica SANG
20 pf Radial lead mica CDE CD15ED200J03F
10 pf Radial lead mica CDE CD15CD100D03F
470pf 500V 5% Radial lead mica CDE CD15FD47IJ03F
225p 100V radial lead

a whole bunch tested a few, seem OK, mostly untested $5
CDE IF-54 2X0.25 uf 110V 2 new $6 ea designed, for filtering the power line, metal box with two input wires, 3 output wires (white=gnd), in box
Mallory HC2540A 4000uf 25V 7 new $6 ea in box, black plastic case
0F40-504, 0.5 mfd, 4000VDCW, Ext'd foil  2 used $5 ea Plastic Capacitors in Chicago, Red colored glass case with screw terminals
0F50-254, 0.25 mfd, 5000VDCW, Ext'd foil 1 used $4 ea Plastic Capacitors in Chicago, Red colored glass case with screw terminals
.0047 uf 15,000V many new $5 ea yellow colored, axial leads, mylar?  MPE-11-N, 10% tolerance, F-DYNE
45 uf   440 AC 1 used $15 marked "internal fuse" oil type
8uf  660 AC 1 used $10 oil type
0.5 uf 1500DC, rectangular shape 1 used $8 oil type
4uf 1000DC 1 used $12 oil type
2 uf 1000DC 1 used $8 oil type
0.1 uf 2000DC 1 used $8 oil type
2(?) uf 600DC 1 used $5 oil type
10 uf 600DC 1 new $20 oil type
1uf 600 DC 1 used $8 oil type
10 uf 440AC 1 used $10 oil type
2X0.5 uf 600DC 1 used $5 oil type
3.8,0.05uf 300AC 1 used $2 oil type (ballast)
1uf 400v 1 used $5 oil type
7.5uf 165AC 1 used $5 oil type
4 uf  370AC 1 used $8 oil type
10 uf 1000DC 2 used $15 oil type
Mallory 4000 MFD 25VDC HC2540A screw terminal filter 7 new $4 ea  Electrolytic

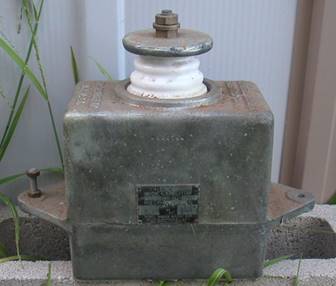

1 used $50 High voltage mica capacitor:

.001, 25 amp, 25KV, mica capacitor (mica is the best,
lowest loss), Nice aluminum case (it's dusty in the photo), ceramic insulator.

Relays
Sigma 70R4 3 new $3 ea 4PDT 12VDC coil, contacts are 2 amp at 28 VDC or 120 VAC
Magnecraft W171DIP-19, Mouser part number 528-171-19, Reed Relays SPST-NC W/DIODE 12V, 1200 ohm coil - Digikey pricing is $6 each aprox 50 new, ROHS compliant $3 each SPST, 12V
16Amp 3PDT relay, 24Vac coil, spade socket mount (62.33.8.024.0000)

Finder General Purpose relay, 3PDT 16Amp, 24Vac coil, Spade socket mount, or .187 faston connectors


sockets and retainers for above

 12 new, ROHS? $8 each

Switches

ask

Transformers

Motorola 25C800144C 1 used $10 110AC, 6.3 and 5V AC, ?? HV, may have come from a TV - workis
Motorola 25D835532O 1 used $10 same comment as above
Stanley S-1360 reactor, 0.8 HY, 20V 800 cy, 50 ohms DC 1 used $6 also marked TF1A04YY REACTOR, olive drab colored
Tube Shields and matching sockets - mostly 12 pin, some 9 pin - mostly bayonet based, MIL surplus or removed from MIL equipment
Click here to see photo   		 many used .25 to $1 ea
